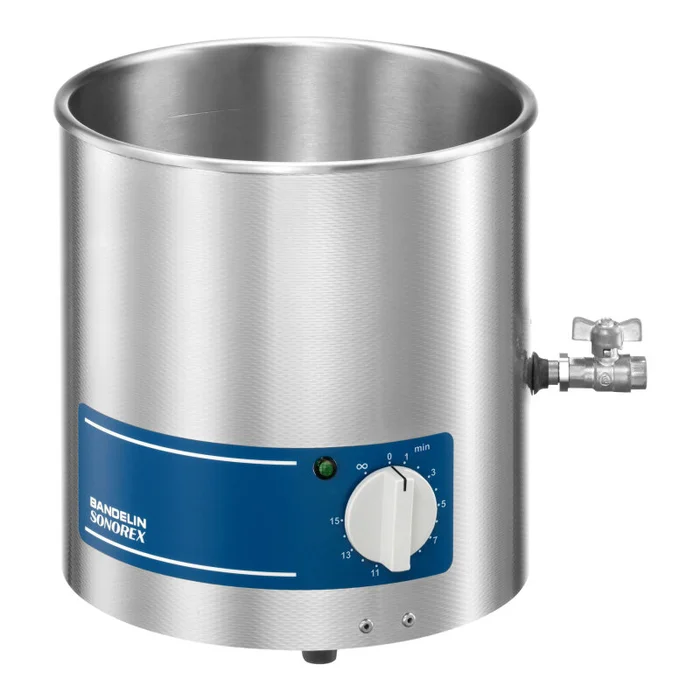

RK 106

Beschreibung

ultrasonic unit produced by Bandelin
dimensions:

• Inner tank dimensions l×w×d: Dia. 240mm, 130mm high
• Exterior dimensions l×w×h: Dia. 265mm, 270mm high
• Weight kg: net 5,5; gross 6,4
• Capacity: 5,6 litres
• Filling volume for cleaning: 4,0 litres

proposal for application:

• medical and laboratory range
• test sieve cleaning
• workshop

features:

• control elements: control knob
• Tank: stainless steel AISI 304
• Housing: stainless steel AISI 304
• Outlet: ball cock ¼“, right side
• drip-proof
• Protection grade: IP 32
• Timer: 1-15 min and infinite

Technical data:

• Transducer: 4 PZT broad beam transducers
• HF generator: overload protected, constant power
• Operating mode: double half-wave
• Frequency: 35 kHz, automatic frequency control
• Ultrasonic peak output: 480 W*

(in combination with SweepTec a four times higher value of HF-output is obtained)

• HF power: 120 W eff
• Current consumption: 0,6 A
• Mains connection: Standard 230 V~ 50/60 Hz, alternative 115 V~ 50/60 Hz
• Leakage current: < 0,5 mA
• Fixed power cable, 2 m
