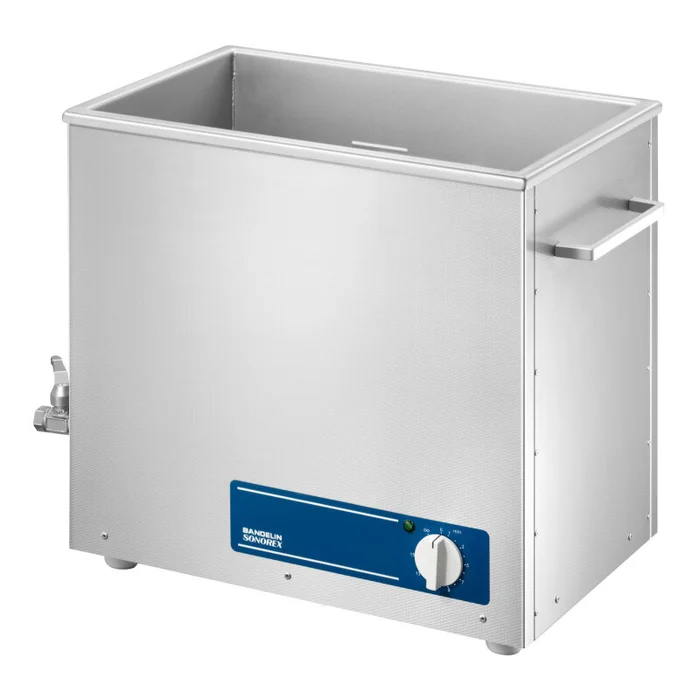

RK 1028 C

Beschreibung

ultrasonic unit produced by Bandelin
dimensions:

• Inner tank dimensions l×w×d: 500 × 300 × 300 mm
• Exterior dimensions l×w×h: 540 × 340 × 500 mm mm
• Weight kg: net 24,6; gross 28,3
• Capacity: 45,00 litres
• Filling volume for cleaning: 30,00 litres

proposal for application:

• medical and laboratory range
• dental line
• workshop

features:

• control elements: control knob
• Tank: stainless steel AISI 316 ti
• Housing: stainless steel AISI 304
• Outlet: ball cock G ½“, left side
• Handles: on sides
• drip-proof
• Protection grade: IP 32
• Timer: 1-15 min and infinite

Technical data:

• Transducer: 8 PZT broad beam transducers
• HF generator: overload protected, constant power
• Operating mode: double half-wave
• Frequency: 35 kHz, automatic frequency control
• Ultrasonic peak output: 2000 W*

(in combination with SweepTec a four times higher value of HF-output is obtained)

• HF power: 500 W eff
• Current consumption: 2,2 A
• Mains connection: Standard 230 V~ 50/60 Hz, alternative 115 V~ 50/60 Hz
• Leakage current: < 0,5 mA
• Fixed power cable, 2 m
