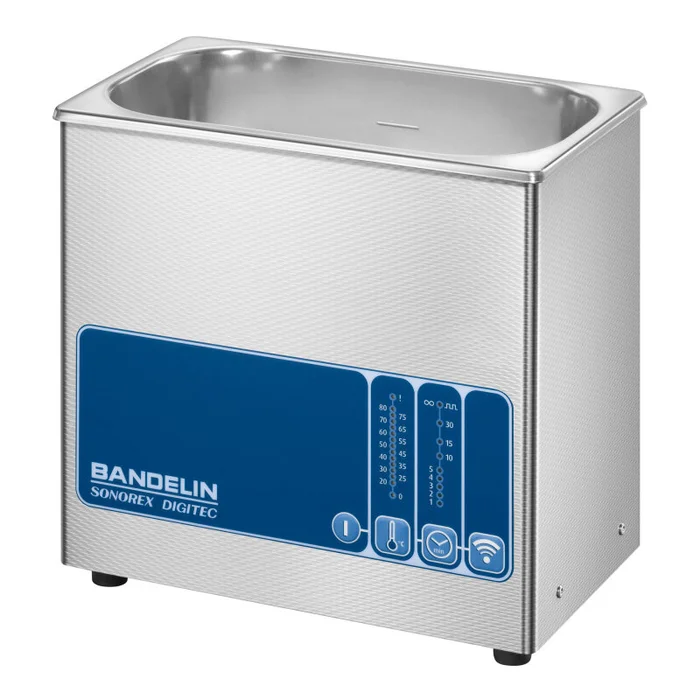

DT 100 H

Beschreibung

digital ultrasonic cleaning unit
dimensions:

• Inner tank dimensions l×w×d: 240×140×100mm
• Exterior dimensions l×w×h: 260×160×250mm
• Weight kg: net 3,6; gross 4,6
• Capacity: 3,0 litres
• Filling volume for cleaning: 2,0 litres

proposal for application:

• electrode
• jewels, ornaments
• coins, medals
• laboratory
• dental line
• medical line
• workshop

features:

• control elements: push button
• Built-in heater 30 – 80 °C, 140 W, thermostatically adjustable
• Tank: stainless steel AISI 304
• Housing: stainless steel AISI 304
• protected against spray
• Protection grade: IP 33
• Timer: 1, 2, 3, 4, 5, 10, 15, 30 min and infinite

Technical data:

• Transducer: 1 PZT large area transducer
• HF generator: overload protected, constant power
• Operating mode: double half-wave
• Frequency: 35 kHz, automatic frequency control
• Ultrasonic peak output: 320 W*

(in combination with SweepTec a four times higher value of HF-output is obtained)

• HF power: 80 W eff
• Current consumption:230V – 1,0 A; 115V – 2,0 A
• Mains connection: Standard 230 V~ 50/60 Hz, alternative 115 V~ 50/60 Hz
• Leakage current: < 0,5 mA
• Fixed power cable, 2 m
