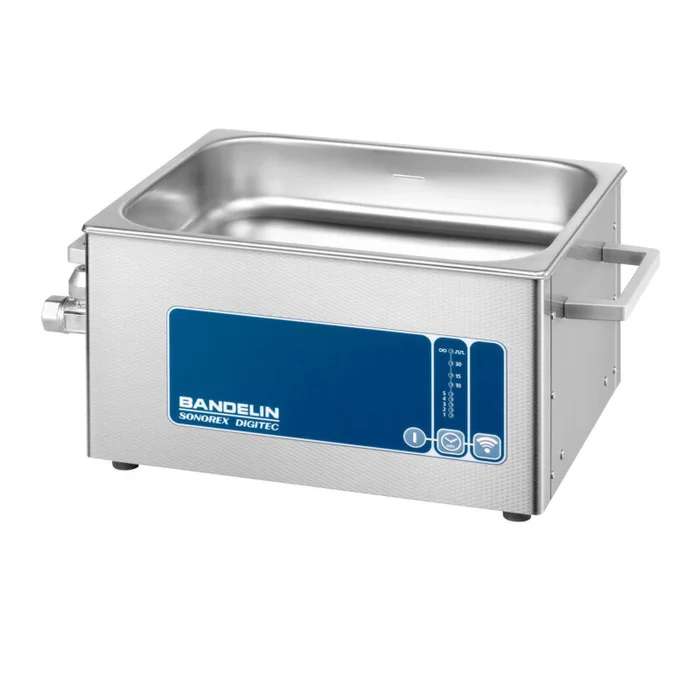

Digitec DT 510 F

Beschreibung

basic set:

• Ultrasonic bath SONOREX DIGITEC DT 510 F
• flsk holder GL100 F
• 250 ml TICKOPUR R 33

Spring clamps EK are necessary to fithe laboratory flasks fast and easy to the flask holder GL.
Dimensions:

• Interior dimensions L×B×T: 300×240×65mm
• Exterior dimensions LxBxT: 325×265×195mm
• Weight kg: netto 5,15; brutto 7,5
• Capacity: 4,3 Liter
• Filling volume for working: 2,5 Liter

proposal for application:

• Cleaning of technical glassware like burettes, pipettes, petri dishes and laboratory fl asks
• disinfection and cleaning at the same time
• Degassing of beer samples for analysis of alcohol contents, original worth, colour, pH value
• Degassing of food samples from cans for analysis of stannous contents
• Extraction of quaternary ammonium compounds (QAC) of wood
• Extraction of herbs samples for determination of afl atoxines (causing mold decay on food)
• Extraction of soil samples for determination of hydrocarbons
• Test method for freeze-thaw resistance of concrete: CDF test – through sonication,loosely adhering scaled particles are removed from surface

features:

• control elements: push button
• Tank: stainless steel AISI 304
• Housing: stainless steel AISI 304
• protected against spray
• Schutzgrad: IP 33
• Handles: on sides
• Timer: 1, 2, 3, 4, 5, 10, 15, 30 min and infinite

Technical Data:

• Transducers: 4 PZT compact transducers
• HF generator: overload protected, constant power
• Operating mode: double half-wave
• Frequency: 35 kHz automatic frequency control
• Ultrasonic peak output: 560 W*

(in combination with SweepTec a four times higher value of HF-output is obtained)

• HF-Power: 140 Weff
• Current consumption: 230V – 0,7 A; 115V – 1,3 A
• Main connection: Standard 230 V~ 50/60 Hz, alternativ 115 V~ 50/60 Hz
• Leakage current: < 0,5 mA
• fixed power cable, 2m
